真正数字便携式激光测振仪

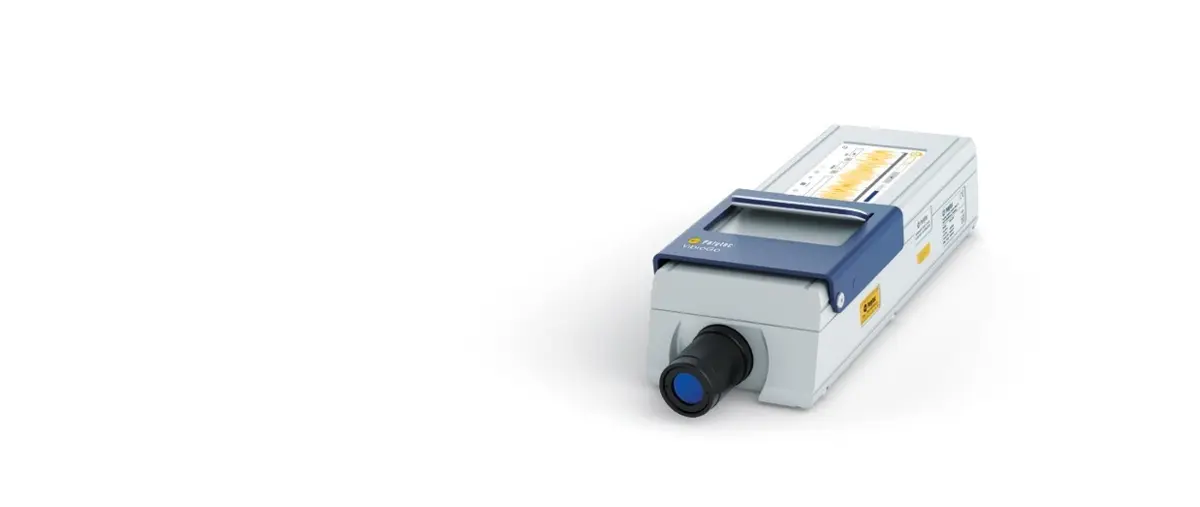

VibroGo®是一款真正便携式、可电池供电的激光测振仪，用于在现场对运行状态下的机器和设施进行快速、有效地状态监测。VibroGo®数字便携式激光测振仪，采用非接触式测量方法，无任何附加质量影响，直接显示时域和频域的测试数据。VibroGo®具有卓越的分辨率，测试带宽高达320 kHz，最远测试距离在30米以外。在整个频率范围内具有极佳线性度，是自然界和工业，如科学研究、产品开发和质量保证等测量动力学和声学特性的理想工具。
亮点
//- 野外和实验室里的声学和动力学精密研究
- 操作简单，触摸显示屏，能自动聚焦
- 测试数据的车载数据存储、监控和快速分析
- 无线数据传输，远程控制
- 重量轻，功能强大，户外防护等级IP64，可选配移动电源，可续航3小时
- 测试距离高达30米，频率覆盖DC~320 kHz，速度高达6米/秒
- 可输出位移和加速度
- 可输出模拟信号和数字信号
车载数据记录，监控
随时随地为您提供服务：连续几个小时进行测量并记录振动数据，同时检查信号质量，并对参数设置进行微调。这种全自动智能操作，确保测试数据有效，以便进一步进行处理和分享。
声学和动力学测试的理想工具
若您正在寻找一款便携式、多功能且非接触式的振动传感器系统，VibroGo®正是理想之选。轻量化三脚架可实现快速架设，移动电源支持3小时独立运行。在高压、高温或辐射等危险区域，您可安全地从远处测量机械振动。
通过以太网或无线连接实现随时随地的测量与远程控制，轻松完成传感器配置及数据传输。
Take VibroGo® with you and travel the world
Join us on a global tour to see firsthand how portable laser Doppler vibration measurement technology can help with biological research and the acoustic, vibration and dynamic detection of mechanical equipment.
附件和选配件
VIB-A-CAS16 Transportation Case
Robust transportation case for VibroGo. Included with sensor.
A-MIR-xxxx Mirror Sets
Polytec's mirror sets contain different sizes of mirrors to assist in the set-up of your measurement.
OFV-036-M Pan/Tilt Adjustable Mirror
Mirror diameter 25 mm.
VIB-A-P01 Tripod Mountable Tilt Stage
VIB-A-P02 Tripod Mountable Traverse/Tilt Stage
VIB-A-P06 Tripod Mountable X/Y/Tilt Stage
VIB-A-P07 Pan/Tilt Adjustable Mounting Plate
For installation in industrial production lines. Allows fine adjustment of the tilt and rotation angles by ± 1.3°.
VIB-A-T02 Tripod with Pan/Tilt Head
VIB-A-T05 Tripod with Geared Pan/Tilt Head
VIB-A-T08 Tripod
Data Acquisition and Analysis Software
Easy-to-use vibration analysis software with 2-channel USB data acquisition up to 20 kHz.
A-CBL-0001 Ethernet Cable RJ 45/M12 5 m
Ethernet cable for digital data transfer between VibroGo and a computer (VibSoft 5.5 or newer required).
A-CBL-0002 Ethernet Cable RJ 45/M12 10 m
Ethernet cable for digital data transfer between VibroGo and a computer (VibSoft 5.5 or newer required).
VGO-C-200-C04 Trigger Cable 1.5 m
For connection with the Trigger input (CON 4) (inlcuded in scope of delivery of VibroGo)
A-PPS-01 Plug-in power supply
Plug-in power supply 12 V AC / DC, included in scope of delivery of VibroGo
A-MPS-001 Mobile Power Supply
High-performance lightweight rechargeable battery (lithium polymer, A-MPS-PB1) for mobile power supply.
A-WIC-001 WLAN-Stick CE
CE-certified WLAN stick for using wireless access. (For all countries of the EU, Switzerland, South Africa, India, Oman, Qatar)
A-WIC-002 WLAN-Stick FCC
FCC-certified WLAN stick for using wireless access (for USA, Canada, Rep. Taiwan)
A-LAG-0633 Laser Adjustment Goggle
Facilitates the precise pointing of the laser on the device under test.
A-RET-xxxx Retro-Reflective Supplies
Selection of sprays, tape, sheets and micro glass beads for improvement of signal to noise ratio when measuring uncooperative surfaces.
